Product Description

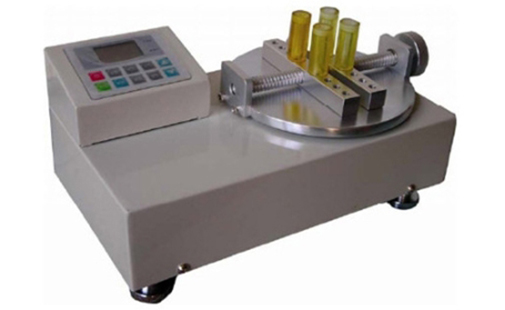

Bottle Cap Torque Tester

Function:
HB Series Cap Torque Tester is an intellectualized measure instrument, which is specially designed for testing and measuring different of torque. HT is main used for kinds motorized or air screwdriver, torque screwdriver, torque wrench, torque driver, measure and calibrate torque testing, and parts fracture test. It is widely applied in electric industry, machinery industry, light industry, automobile industry, scientific research and so on.

Specification:
1. High accuracy and resolution;
2. Peak hold function;
3. Peak automatic clearance function;
4. Tolerance limit (up and down limit);
5. 3 units available: N.m, kgf.cm, lbf.in;
6. Reset acceleration of gravity function;
7. Large memory;
8. Inductive background light;

9. USB output; Match synchronous analysis software


Specifications:

Model

HB-10HB-20HB-50HB-100HB-200
 Peak measurement range

N.m

0.001~1

0.001~20.001~50.01~100.01~20
kgf.cm0.01~10.20.01~20.40.01~510.1~1020.1~204
lbf.in
0.01~8.850.01~17.70.01~44.250.1~88.500.1~177
 Measurement modeTrack, Peak, Auto Peak
 Accuracy±0.5%Fs
 Powerinput 220V~240V; output DC9V, 400mA
 Weight9.8Kg

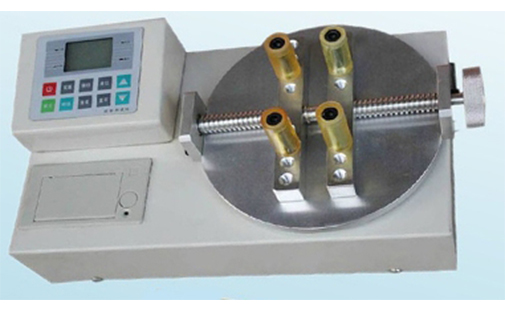

 Note: Printer is optional, if with printer, order number is HB-10P, HB-20P, HB-50P, HB-100P, HB-200P
