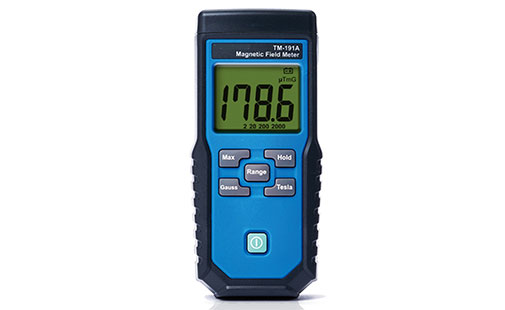

TM-191A EMF Meter  Magnetic Field Meter

This meter is applied to measuring electromagnetic fields of extremely low frequency (ELF) of 30 to 300Hz

Application:

It is capable of measuring the electromagnetic field radiation intensity that is produced from electric transmission equipment, power line, air conditioner, refrigerator, computer monitor, video/audio device and so forth.

Features:

1. Switch between the display of micro-Tesla and mini-Gauss is available.

2. Data hold (HOLD), maximum (MAX) Hold function.

3. Range display (20, 200, 2000).

4. Low battery indicate.

5. Over load display “OL”.

Specifications:

1. Display: 3½ digits LCD, maximum reading 1999.

2. Range: 200/2000mG, 20/200µT.

3. Resolution: 0.1/1mG or 0.01/0.1µT.

4. Frequency response: 30Hz to 300Hz.

5. Sensor: Single Axis

6. Accuracy: ±(2.5%±6dgt) at 50Hz/60Hz.

7. Over load: LCD display “OL”.

8. Sample rate: 2.5 times per second.

9. Battery: 9V battery.

10. Battery life: Approximate 100 hours.

11. Operating temperature & humidity: 5°C~40°C, below 80% RH.

12. Storage temperature & humidity: -10°C~60°C, below 70%.

13. Weight: About 170g.

14. Dimensions: 140(L)*65(W)*37.5(H)mm.
