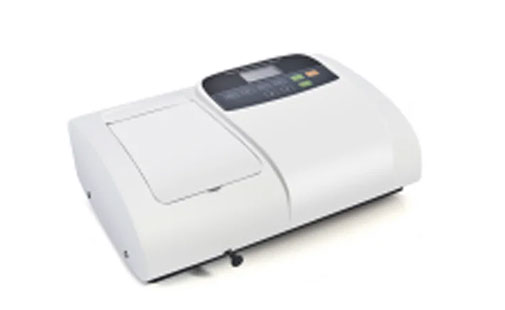

AMV09 AMV09PC UV Spectrophotometer

Features:

1. 2.5 inches High-Definition LCD Display, Standard curve and test results are clearly displayed.

2. High-quality Tungsten Lamp and Deuterium Lamp, Longer service life, much more stable, Lower stray light, higher photometric accuracy.

3. Quick to Establish Standard Curve. Quick to establish standard curve and measure the unknown samples.

4. Easy Data Output by USB/Parallel Port. USB Port: Connect to computer and operate through PC software. (PC software is optional, order number AMV09PC.) Parallel Port: Connect to micro thermal printer to print test data. ( Micro thermal printer is optional.)

5. Multiple Results Readout, Large Storage Capacity. Display 5 lines of results per page, including wavelength, absorbance and transmittance. Up to 200 groups of test results can be saved in device directly.

6. Automatic Wavelength Setting, Set wavelength by arrow keys to reduce misoperation.

Specifications:

1. Optical System: Single beam, grating 1200 lines/mm

2. Wavelength Range: 190-1000nm

3. Bandwidth: 2nm

4. Wavelength Accuracy: ±2nm

5. Wavelength Repeatability: ≤0.5nm

6. Wavelength Setting: Automatically

7. Wavelength Resolution: 0.1nm

8. Photometric Accuracy: ±0.5%T

9. Photometric Repeatability: ≤0.2%T

10. Photometric Range: -0.3-3A, 0-200%T, 0-9999C

11. Photometric Mode: T, A, C, F

12. Stray Light: ≤0.1%Tat 220nm & 360nm

13. Stability: ≤0.002A/30min at 500nm

14. Display: 128*64Dots LCD

15. Detector: Silicon Photodiode

16. Light Source: W Lamp & D2 Lamp

17. Output: USB port & Parallel Port

18. Power Requirements: AC 85~250V
