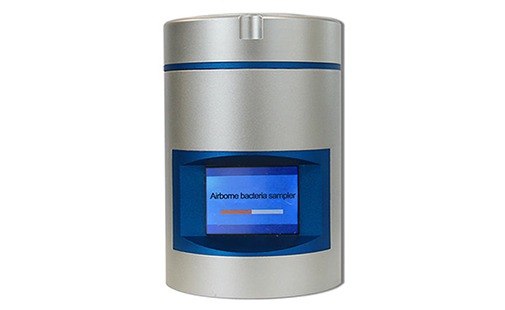

AM100ST Air Bacteria Sampler

Basic Principle

The AM100ST is a high-performance instrument. It utilizes the principle of Andersen air sampler to extract air through a multi hole cover (465 * 0.6mm), and microorganisms in the airflow collide with the surface of the agar medium attached to the standard culture dish. After completing the sampling cycle, culture the dish under suitable conditions and then determine the total number of colonies.

Features:

1. Suitable for standard plates with a diameter of 90~100mm

2. With built in flow calibration function and temperature & humidity calibration function (required to be used with a planktonic bacteria calibration instrument which is an optional choice)

3. External Bluetooth printer that can print data information (time, date, temperature and humidity, sampling volume)

4. Adjustable sampling head support clip to fit the size difference of different plates (90~100mm)

5. Can be connected to a 100/240V, 50/60kHz working power supply for operation, or only use batteries for operation

6. The sampling volume can be set to any value between 1~9999L

7. Fully automatic sampling accuracy calibration to avoid manual operation errors

8. The impact speed (the speed at which microorganisms in the air impact the surface of agar) is approximately 10m/s, equivalent to level 5 of the Andersen sampler.

Specifications:

1. Sampling flow rate: 100L/Min ±2.5%

2. Sampling delay: 0~255s adjustable

3. Sampling volume: 0~9999L adjustable

4. Impact rate: 10.8m/s

5. Sampling head material: Anodized aluminum oxide, suitable for most disinfection methods

6. Battery using time: More than 5 hours

7. Overall dimension: 120 x 120 x 175mm

8. Weight: 2.1Kg

9. Standards: ISO 14698-1/2, GB/T 16293-2010, GMP
