VORTEX2 MX-S Vortex Mixer Adjustable Speed-Vortex Mixer-Qingdao Tlead International Co.,Ltd.-Qingdao Tlead International Co., Ltd

Product Description

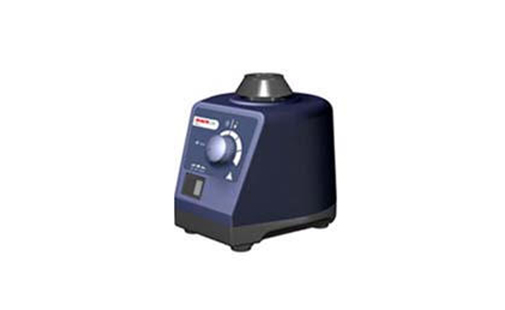

VORTEX2 MX-S Vortex Mixer Adjustable Speed

1. Voltage: 220~230V/110~120V

2. Frequency: 50/60HZ

3. Power: 60W

4. Shaking movement: orbital

5. Orbital diameter: 4mm

6. Motor rating input: 58W

7. Motor rating output: 10W

8. Permissible ON time: 100%

9. Speed range: 0~2500RPM

10. Speed display: Scale

11. Run type: Continuous/touch operation

12. Dimensions: 127x130x160mm

13. Weight: 3.5Kg

14. Permissible ambient temperature: 5 ~ 40°C

15. Permissible relative humidity: 80%

16. Protection class acc. to DIN EN60529: IP21

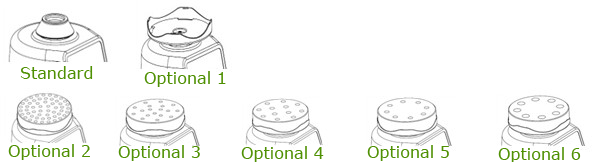

Optional Head
Order Number	Serviceable Range	Operation Mode
MX-SS	Top cup for test tube and small vessels	Continuous/Touch operation
MX-S1	Universal top plate for S2-S6	Continuous operation
MX-S2	For 48 test tubes Ø6mm	Continuous operation
MX-S3	For 18 test tubes Ø10mm	Continuous operation
MX-S4	For 12 test tubes Ø12mm	Continuous operation
MX-S5	For 8 test tubes Ø16mm	Continuous operation
MX-S6	For 8 test tubes Ø20mm	Continuous operation
