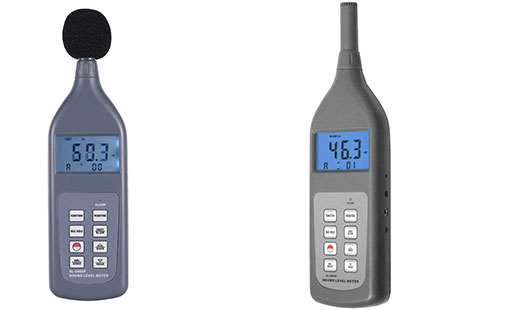

SL-5868P Sound Level Meter

Order No.:

1. SL-5868P: Standard packing

2. SL-5868PS: With software and cable

3. SL-5868PB: With Bluetooth Adapter and Software

Features:

1. Permits choice A, C, F weighting and Fast / Slow response times.

2. Offers 4 measurement parameters: Lp (sound level); Leq (Equivalent Continuous A Sound Level ); Lmax ( Maximum Sound Level) and LN (Percent of all readings over alarm value set ).

3. DC output :10mv/db.

4. Can memorize 30 groups of measurement results and measuring conditions.

5. Auto range selection and digital display with no guessing errors.

6. Use USB/RS-232 data output to connect with PC.

7. Provide Bluetooth data output choice.

Specifications:

1. Standards: IEC 651.2, ANSI 1.4.2

2. Paraments Measured:

    1) Lp-Sound Level

    2) Leq-Equivalent Continuous A Sound Level

    3) Lmax-Maximum Sound Level

    4) LN-Percent of All Reading Over Alarm Value Set

3. Testing Range:

    1) Lp: 30dB~130dB (A Weighting); 35dB~130dB (C Weighting); 40dB~130dB (F Weighting)

    2) Leq: 30dB~130dB (10Seconds,1Min, 5Min, 10Min, 15Min, 30Min, 1Hour, 8Hours, 24Hours)

    3) LN: 0%~100%

4. Resolution: 0.1dB

5. Accuracy: 1dB

6. Frequency Weighting: A /C /F (Flat)

7. Time Weighting: Fast (125 ms)/ Slow (1 Second)

8. Microphone: 1/2 Inch Electret Condenser Type

9. Memory: 30 Group with Measuring Conditions

10. Calibration Signal Built in: 94dB at 1k Hz (sinusoidal)

11. Frequency Range: 20Hz~8kHz

12. Alarm Value Set: 30dB~130 dB

13. Alarm Output: LED Optional Relay Contact (NC)

14. Indicator: Low Battery Indicator

15. Power Supply: 4x1.5V AAA Size (UM-4) Battery

16. External DC Power Supply: DC 5V, 100mA

17. Dimensions: 236mmx63mmx26 mm

18. Weight: 170g

Optional Accessories:

1. ND9 Sound Level Meter Calibrator

2. RS-232C Data with Software

3. Bluetooth Data Adapter with Software

Software Download:

sl5868p.rar
