Product Description

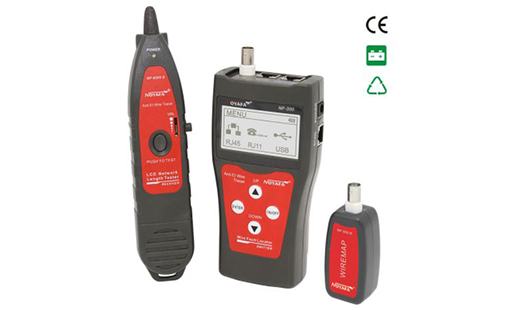

NF-300 Network coax cable tester

Attention:

1.Don't connect high voltage live lines to avoid buring out the machine.

2.Put into the right place to avoid hurting others,because of the sharp part.

3.Connected the cable to the right port.

4.Read the user manual before use it.

NF-300 Transmitter specifications
LCD screen	53x25mm
Tone frequency	130kHz
The Max. distance of tracing cable	Electrified wire:3000m; Non-electrified wire: 2000m
The Max. distance of cablemapping	2000m
The Max. distance of cable length testing	1000m
Trace cable coonected to switch	Anti-jamming
Tone mode	2 Tones, adjustable
Compatible with connectors	RJ11, RJ45, BNC, USB
LED lights display	Wiremap, tone, tracing
Cable map indication	LCD (#1- #8)
Shielded indication	LCD (#9)
Low battery display	LCD (6.5V)
Battery type	DC9.0V（NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)	185 x 80 x 32mm
NF-300 Receiver specifications
Frequency	130kHz
The Max. working current	Less than 70mA
Earphone jack	1
LED illumination	2 LEDs
Battery type	DC9.0V（NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD)	218 x 46 x 29mm
NF-300 Remote unit specifications
Compatible with connectors	RJ45,BNC
Dimensions (LxWxD)	107 x 30 x 24mm
