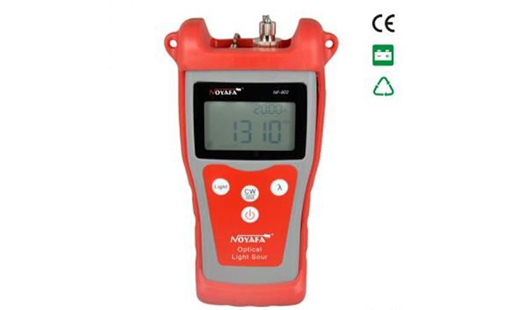

NF-902 Optical Light Source

Inquire Now

Product Description

NF-902 Optical Light Source

Funtions:
1. work with NF-906 optical power meter.
2. A fast,stable and cost effective test solution.
3. Provide 2 wavelengths output:1310,1550nm.
4. CW/ 270Hz,1KHz,2KHz modulation output.

5. FC connector is included, (LC/SC/ST connector for option).


Specifications:

ModelNF-902
Power detecting range-70 ~ +10dBm
Wavelenth1310nm, 1550nm
Emitter typeFP-LD
Output power-7dBm
Modulation frequenciesCW/270Hz,1Hz,2Hz
Fiber TypeSM/MM
Optical connector2.5mm universal connectors
Automatic shutdown time15mins
Battery serving time60h
Power supply9V
