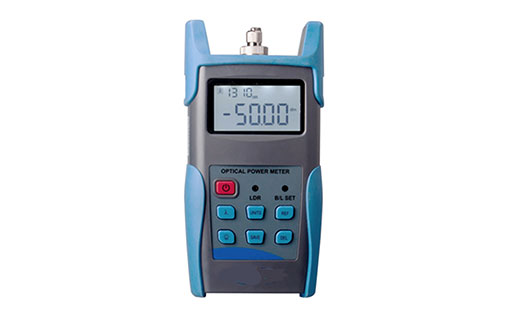

AOP005 AOP006 Digital Optical Power Meter

Features:

1. Wave ID—Automatic wavelength identification and switching

2. Frequency ID/Tone detection---Automatic frequency identification

3. Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)

4. Data storage function, up to 1000 test records

5. USB communication port for saved testing records download

6. Reference power level can be set up and stored

7. User self-calibration function

8. Auto-off function can be activated or deactivated.

9. AA alkaline and AC adapter for power supply

10. Low battery indication

Specifications:

Measurement Range:

1. AOP005: -70~+6dBm

2. AOP006: -50~+26dBm

Others:

1. Calibrated wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm

2. Detector type: InGaAs

3. Uncertainty (dB): ±0.15 (3.5%)

4. linearity (dB): ±0.02

5. Display resolution (dB): 0.01

6. Frequency ID (Hz): 270, 330, 1K, 2K

7. Wave ID (nm): 1310, 1490, 1550, 1625

8. Date storage capacity: 1000

9. Communication Port: USB

10. Optical Connector type: FC, SC, ST interchangeable

11. Alkaline battery: 3*AA, 1.5V, not include

12. Power Supply Adaptor: 8.4V

13.  Battery Operating time: 200 hour

14. Operation Temperature: -10 ~ +60°C

15. Storage Temperature: -25 ~ +70°C

16. Dimension: 23.5*16*8cm

17. Weight: 0.75kg
