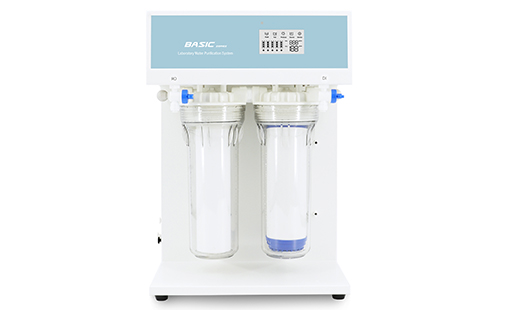

DW100, DW101, DW102 Lab Water Purification System
Features:
1. LED controlling system
2. Display system running status
3. Single stage RO and 1 pump system: 1st pump, to achieve single stage RO system, easy to maintain
4. Easy-to-replacing cartridge: Independent cartridges design, with fast adapters, easy to replace, and running in low cost
5. Automatic microcomputer controlling system, LED real-time animation mode display
6. Running status is showed in the LED display, such as flushing, producing water, full tank, water shortage, leakage and service
7. Power on self-test, power reset, alarm when work more than 6 hours continuously, water shortage, leakage, low and high pressure
8. 3 procedure of the reverse osmosis membrane´s self-flushing: power on, water shortage reset and work more than 2 hours continuously, extend the life of RO membrane
9. 2 kind of installation type, Desk and wall-mounted (except for 45 series and built-in tank model)
10. High-strength metal shell with powder painting technics, achieve elegant appearance and meeting GLP standard
11. Pretreatment cartridges, RO module, deionized cartridges, all designed to modularization independently, easy for maintenance and replacement
12. External water tanks is optional to meet different need and assure ample water-supply
13. Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water´s quality
14. Standard pretreatment (including PP fiber, and active carbon cartridge), effectively protect RO membrane and run in low cost
15. RO module with DOW´s membrane, ensure long life, stable operation and high desalinization rate
16. Precision mixed resin cartridge, combine high pure water quality and low running cost
Specifications
| Model | DW100 (Basic-Q20) | DW101 (Basic-Q38) | DW102 (Basic-Q48) |
| DW100T (Basic-Q20-IT) | DW101T (Basic-Q38-IT) | ||
| Output (25°C) | 20 liters/hour | 38 liters/hour | 48 liters/hour |
| Flow rate | Up to 2 liters/minute (with pressure tank) | ||
| Pure water outlet | 2: reverse osmosis water, deionized water | ||
| Deionized water quality | |||
| Resistivity | 13-17.5MΩ.cm | ||
| Bacteria | <0.1cfu/ml (with optional 0.2µm PES terminal filter) | ||
| Particle(>0.2µm) | <0.1cfu/ml (with optional 0.2µm PES terminal filter) | ||
| RO water quality | |||
| Ion rejection rate | 97% ~ 99% (new RO membrane) | ||
| Organic rejection rate | >99%, when MW>200 Dalton | ||
| Particles and bacteria rejection rate | >99% | ||
| Feed water requirements | Tap water, temperature:5~45°C, pressure:1.0-4.0Kgf/cm2 | ||
| Dimension and weight | Q15, Q30 series: 340 x 320 x 470mm/ Weight: about 15Kg; Q15-IT, Q30-IT, Q45 series: 535 x 320 x 470mm/ Weight: about 20Kg | ||
| Power | AC110~240V, 50/60Hz; Q15,Q30 series: 72W, Q45 series: 120W | ||
| Standard configuration | Main body (Including 1 set of cartridge); built-in 10 liters pressure tank (only for DW100T, DW101T) | ||
Cartridges:
PC-10PP: 10" spun fiber cartridge, About 2-6 months
PC-10AC-G: 10" granular active carbon cartridge, About 6 months
PC-10AC-B: 10" active carbon block cartridge, About 6 months
RO-100GPD: 100 GPD reverse osmosis membrane, About 12-24 months
RO-200GPD: 200 GPD reverse osmosis membrane, About 12-24 months
RO-300GPD: 300 GPD reverse osmosis membrane, About 12-24 months
PTC-MBR-DW: Mixed bed resin cartridge, About 1000 liters pure water/set
PTC-MBR-7.7L7.7l: mixed bed resin cartridge, About 16000 liters pure water
