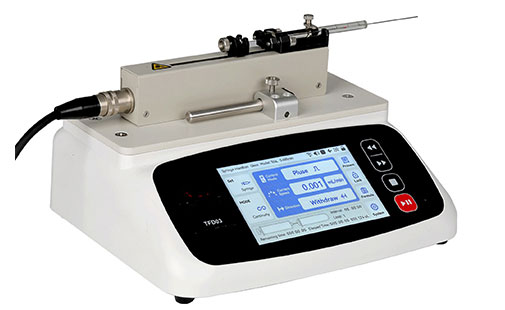

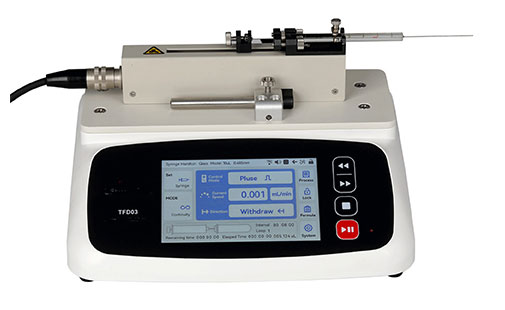

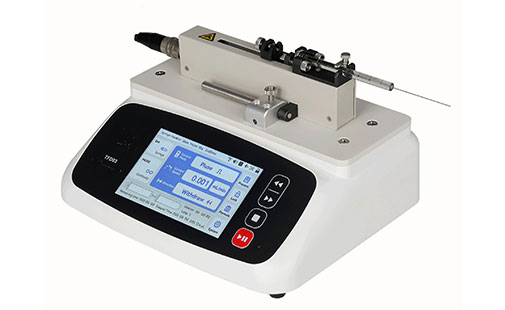

TFD03-01 Laboratory Syringe Pump

The TFD03-01 syringe pump is a single-channel split style micro syringe pump that combines aesthetics, intelligence, precision, and reliability. It is an ideal choice for laboratories requiring high-precision, pulse-free transmission of microflow volumes.

Features:

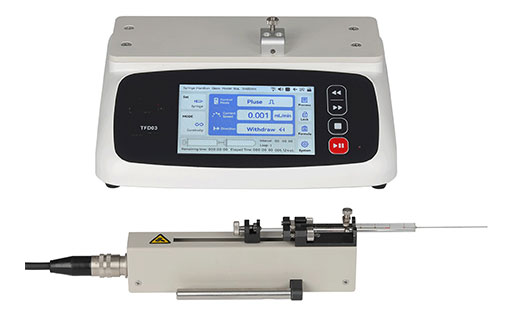

1. New Design: Whole machine lightweight, injection-molded shell, stronger anti-static capability, sleek and beautiful appearance. Controller and execution unit are designed separately, easy to disassemble, and convenient for joint use with other instruments and equipment (such as brain stereotactic locator).

2. New Interface: The 5-inch high-resolution color LCD touchscreen provides a more intuitive and clear interface, featuring the LF-Touch-OS software system for stable and reliable operation. New interface for a simpler and fresh look, with comfortable color schemes, optimized layout, and emphasis on user-friendly functionality presentation from the user’s perspective.

3. Improved Operation Convenience: Easily switch between speed and time units to meet the requirements of different experimental scenarios. Supports both horizontal and vertical screen orientations, optimizing display in limited workspace. Flow calibration is more precise and straightforward, enhancing operational efficiency and accuracy.

4. Improved Safety: Added password function to prevent unauthorized personnel from modifying parameters, strengthening the security of experimental data.

5. Precision casting and high-precision control: Excellent control system and precise mechanical structure, with a travel control accuracy error less than ±0.35%. Strong anti-electromagnetic interference performance, capable of continuous stable operation under high-voltage electrostatic fields.

6. Compatible with various syringes: Built-in various syringe manufacturers and specifications, while also supporting custom syringes for increased flexibility and diversity.

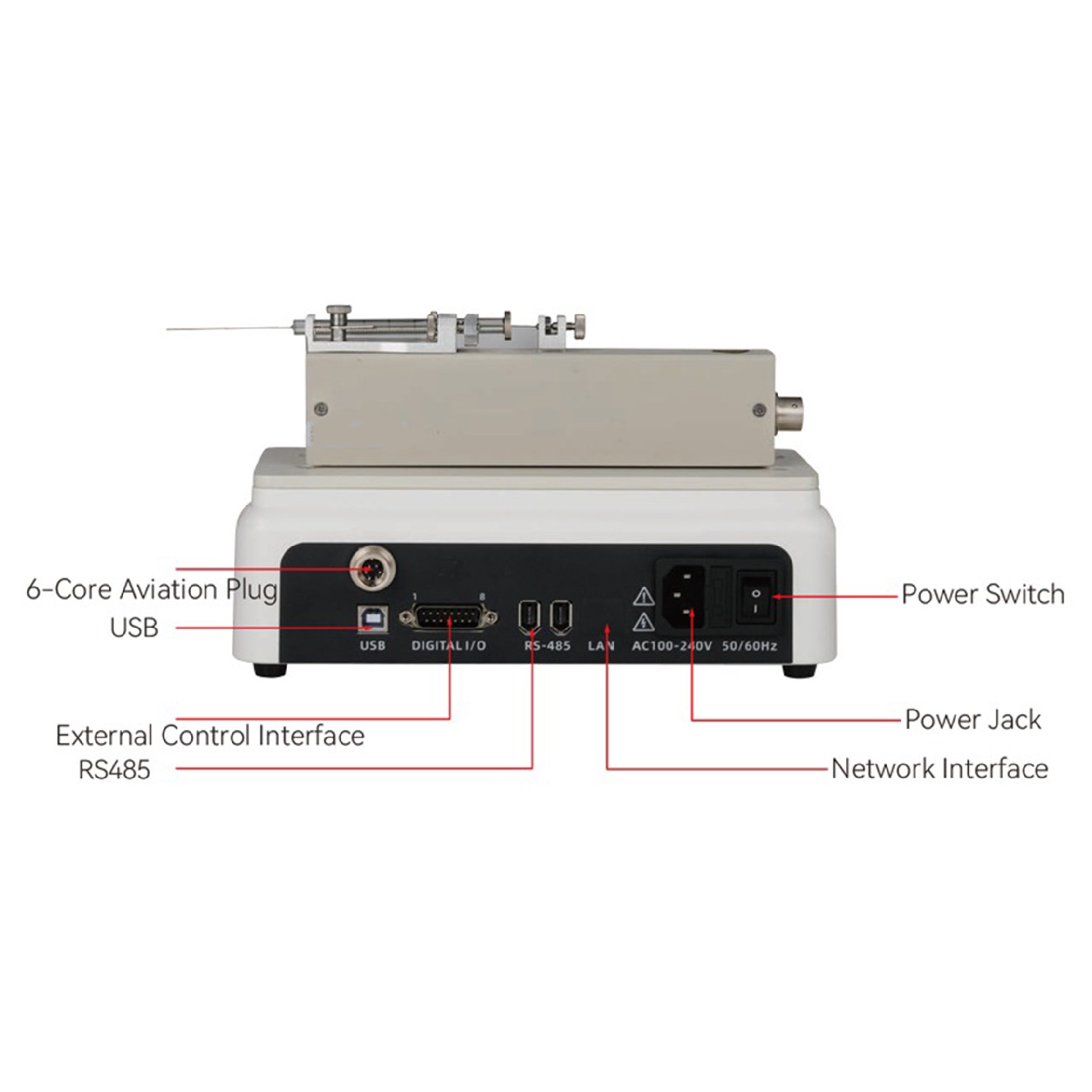

7. Automatic control system: Forms an automated control system with computers, PLC, single-chip microcomputers, etc. Optional WiFi control function can be equipped, allowing remote control of the pump through the app.

Specifications:

1. Working Mode: Infuse, withdrawal, pre-infuse followed by withdrawal, pre-withdrawal followed by infuse, continuous circulation.

2. Channel Number: 1

3. Flow Range: 0.005nL/min (10µL) ~ 152.456µL/min (100uL)

4. Maximum Stroke: 70mm

5. Stroke Resolution: 0.1905μm/ustep

6. Linear Velocity: 0.6096um/min ~ 91.44mm/min

7. Stroke Control Accuracy: Error ±0.35% (when working stroke >30% of whole stroke)

8. Linear Thrust: >1Kgf, adjustable

9. Syringe Size: 0.5uL ~ 100uL

10. Display: 5-inch high-resolution color LCD touch screen

11. Operation Method: Mask key + touch screen operation

12. States Signal Output: Start/stop states and direction states.

13. Control Signal Input: Start/stop states and direction states.

14. Wattage: <30W

15. Dimensions of Driver: 240*196*125mm

16. Dimensions of Execution Unit: 173*39*52mm

17. Weight (controller+execution unit): 1.495kg +0.245kg

18. Applicable Power Supply: AC 100~240V 50Hz/60Hz

19. Degree of Protection: IP31

20. Degree of Pollution: 2

21. Working Environment: Temperature 5 ~ 40°C, relative humidity <80%
