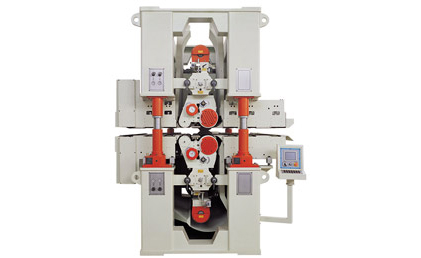

| Model No. | SRP13D | |
| Working Thickness | 3～90mm | |
| Working Length | >900mm | |
| Working Width | 200～1300mm | |
| Sanding Belt Speed | 24 m/s | |
| Size of Sanding Belt (W×P) | 1350×2800mm | |
| Feeding Speed | 6～30m/min | |
| Power | Main Motor | 75kW×2 |
| Feeding Motor | 11kW | |
| Lifting Motor | 1.5kW | |
| Brush Motor | 0.75kW×2 | |
| Compressed Air | Pressure | 0.6 MPa |
| Air Consumption | 0.15m3/min | |
| Suction Air Consumption | Volume | 24000m3/h |
| Pressure | 1300Pa | |
| Average Air Speed | 25～30m/s | |
| Overall Dimension（L×W×H） | 2200×3360×2900mm | |
| Net Weight | 15 T | |
| All rights for technical modifications reserved. CE approval | ||
