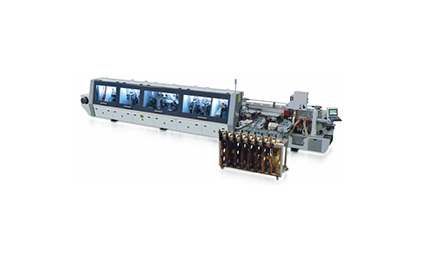

Single Side Automatic Edge Banding Machine NB8PCHJ

Inquire Now

Product Description

Features：
1. Fiber V-belt for pressing and feeding panels stably;
2. Pre-melt unit containing pre-heated glue ready for final heating simultaneously dispensing to glue application unit to capture in shortest time evenly applying glue on panel;
3. Two gluing units available for easy switching over from one to another glue color;
4. Heating up device installed to solve gluing quality during low temperature in cold winter;
5. Automatic edge tape changing system with magazine for 8 rolls maximum to detect and change types being used for high productivity and design requirements;
6. Option: servo motor to make grooving from bottom or side;
7. Corner trimming unit using four motors,fast but good finished corners.
Model
 NB8PCHJ
panel length
 ≥120mm
panel width ≥100mm
panel thickness 10-60mm
edge tape thickness
 0.4-3mm
feeding speed  16-24m/min
total power  26kw
net weight 5600kg
overall dimensions
 10700×1450×1650mm
