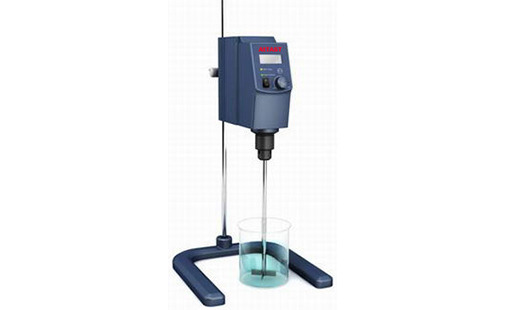

MSV-40 MSV-40A MSV-20 MSV-20A Overhead Stirrer

Inquire Now

Product Description

MSV-40 MSV-40A MSV-20 MSV-20A Overhead Stirrer

Features:
1. Accurate stirring speed control: The control technology effectively guarantees the speed precision.
2. Anti-spill samples: PC control system starts up smoothly, prevent samples overflow.
3. LCD real-time display: Setting value and actual value can be displayed. Real-time monitoring torque and speed via LCD display.
4. Overload protection: Motor would automatically stop in case of continuous overload.
5. Setting safety circuit: Automatically cut off the circuit when motor overheating and other exceptional circumstances, make sure using security.
6. Extended application: PC can control and document all measuring values via RS232 interface. Parameter can be set to carry out safety monitoring

Specifications:

  MSV-40 MSV-40A MSV-20 MSV-20A
Max. stirring quantity (H2O) 40L 20L
Motor rating input 120W 60W
Motor rating output 100W 50W
Speed range 50-2200RPM
Speed display accuracy ±3RPM
Speed display DIGITAL LCD ANALOG LED DIGITAL LCD ANALOG LED
Speed display resolution 1RPM
Max. torque 60Ncm 40Ncm
Torque display LCD LED LCD LED
Overload protection  LED light flash, auto stop
Motor protect
Viscosity max. 50000mPas 10000mPas
Chuck range diameter 0.5-13mm
Rod size [dia. x L] 14x220mm
Dimension [W x H x D] 83x220x186mm
Weight 2.4Kg
Voltage 100-240V
Frequency 50/60HZ
Power 130W 70W
Protection class acc. to DIN/EN 60529 IP42
Temperature 5-40oC
Permission relative humidity 80%
Remote control (RS232 interface) Yes
