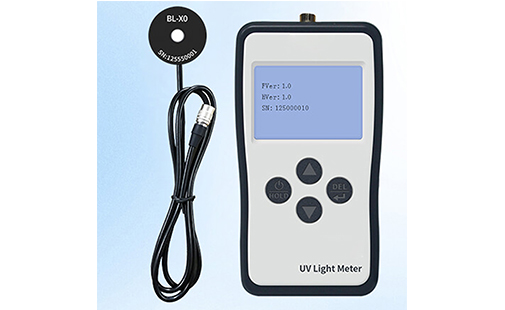

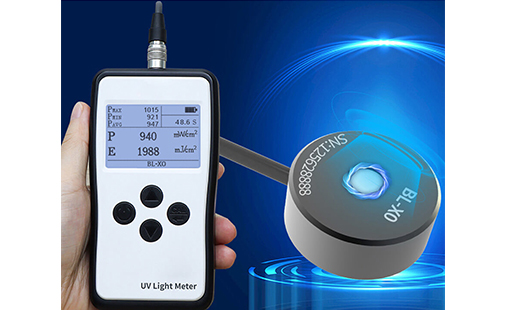

AMT315 Multi-Probe UV Light Meter
Applications:
1. Ultraviolet (UV) light is categorized into UVA (315~420 nm), UVB (280~315 nm), and UVC (230~280 nm) bands.
2. UVA is commonly used in industries such as photopolymerization, lithographic exposure, UV curing, and integrated circuit fabrication.
3. UVB is used in medical and healthcare environments for phototherapy lamps, plant growth lights, and reptile UVB fluorescent lamps.
4. UVC, also called shortwave UV, is primarily used for sterilization. UVC germicidal lamps are widely employed in hospitals, pharmaceutical cleanrooms, CDC labs, and wastewater treatment plants.
5. The AMT315 handheld UV meter is ideal for these applications, where different probes are required to measure the radiation intensity or energy of specific UV bands.
Features:
1. Compatible with 12 different probes for UVA, UVB, UVC, and more Simultaneously records UV intensity, energy, and testing duration
2. Automatically calculates maximum, minimum, and average power values
Probe Selection:
1. We offer 12 different probe models to meet various needs based on spectral range, application type, measuring range, and test aperture size. (Probes are sold separately.)
2. Select probes based on the UV light source’s spectral range and application.
3. Refer to our application guide for recommended probes for common industry uses.

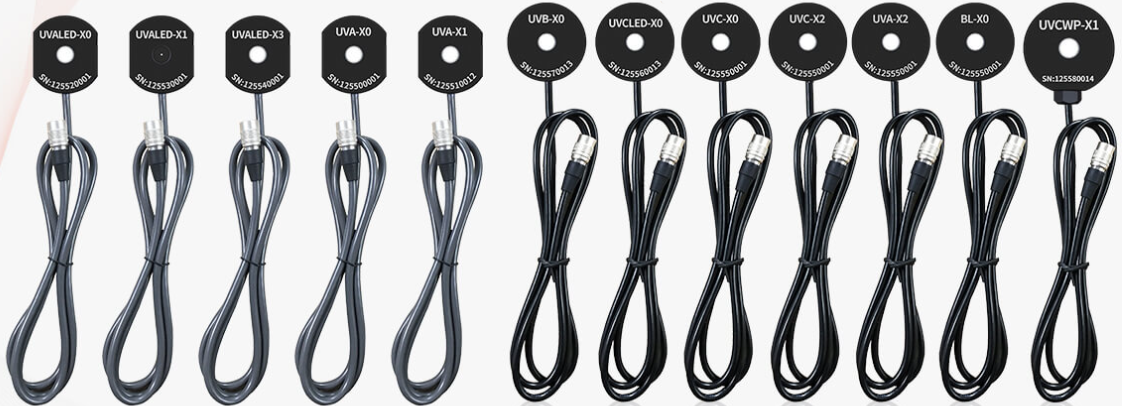

Probe Details:
| No. | Probe | Spectral Range | Power Range | Aperture | Application |
| 1 | UVC-X0 | 230~280nm | 0~200000μW/cm² | Φ10mm | 254nm UV sterilization mercury lamp |
| 2 | UVC-X2 | 210~250nm | 0~200000μW/cm² | 222nm far UVC lamps | |
| 3 | UVCWP-X1 | 230~280nm | 0~200000μW/cm² | 254nm UV sterilization mercury lamp | |
| 4 | UVCLED-X0 | 240~320nm | 0~200000μW/cm² | 260nm-285nm UV LED germicidal lamp | |
| 5 | UVB-X0 | 280~315nm | 0~200000μW/cm² | General UVB intensity and energy measurement | |
| 6 | UVA-X0 | 315~400nm | 0~2000μW/cm² | High pressure mercury lamp in UV curing industry | |
| 7 | UVA-X1 | 315~400nm | 0~200000μW/cm² | General UVA intensity and energy measurement | |
| 8 | UVA-X2 | 315~365nm | 0~200000μW/cm² | 340nm UVA aging lamps | |
| 9 | UVALED-X0 | 340~420nm | 0~200000μW/cm² | Area light source of UV LED in UV curing industry | |
| 10 | UVALED-X1 | 340~420nm | 0~200000μW/cm² | Point light source of UV LED in UV curing industry | |
| 11 | UVALED-X3 | 340~420nm | 0~200000μW/cm² | General UVA+UVV LED, low power measuring range | |
| 12 | BL-X0 | 410~490nm | 0~2000μW/cm² | 450nm blue light |
Suggestion of Probes for Classic Industry Application:
1. Detect UV Aging Box: UVA-X1, UVB-X0, UVA-X2
2. Detect Ambient Light And Sunlight: UVA-X1, UVB-X0
3. Detect Welding Arc: UVA-X1, UVB-X0, UVC-X0
4. Detect UV Light Of Non-destructive Testing: UVA-X0
5. Detect UV Nail Lamp: UVALED-X3
6. Detect Plant Growth Lamp Or Reptile Lamp: UVB-X0
7. Detecting The 222nm Far UVC Lamps: UVC-X2
8. Detecting The Medical Phototherapy Devices Or LED Blue Therapy Light: BL-X0
Order Number:
1. AMT315-1: UVC-X0
2. AMT315-2: UVC-X2
3. AMT315-3: UVCWP-X1
4. AMT315-4: UVCLED-X0
5. AMT315-5: UVB-X0
6. AMT315-6: UVA-X0
7. AMT315-7: UVA-X1
8. AMT315-8: UVA-X2
9. AMT315-9: UVALED-X0
10. AMT315-10: UVALED-X1
11. AMT315-11: UVALED-X3
12. AMT315-12: BL-X0
