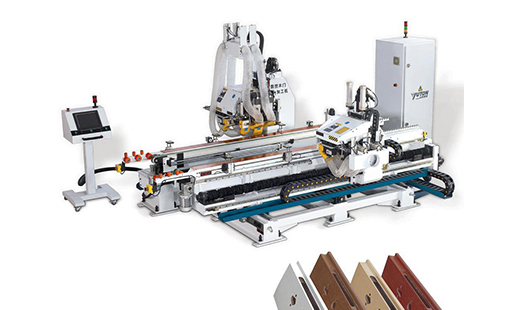

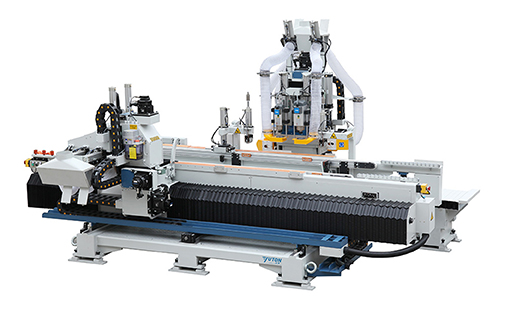

MDK4120Q5 CNC Door Lock Hole & Slot Solution Door Lock Hole Drilling Hinge Boring Driller Wooden Door Hole Slotting Mortiser Lock

Features:

1. Function: Used for processing lock hole and hinge slot on door leaf

2. Automatic tool setting,multi-point measure,guarantees machining preciseness

3. Levo & dextro milling to ensure processing quality

4. Processing both longitudinal edge meantime with high efficiency

5. Following clamp patent,to avoid trouble of frequent adjusting clamp device

6. Bar code scanning,auto lubrication

7. Through-feed automatic feed-in & feed-out,feed-out direction could be forward or backward,to satisfy demand of single machine use and compose a line

Specifications:

1. Workpiece length : 1800~2400mm

2. Workpiece width: 400~1100mm

3. Workpiece thickness: 30~60mm

4. Lock-slot levo/dextro motor: 1.5kw / 6.0kw

5. Lock slot square: 0.4kw

6. Lock hole motor: 1.5kw+3.7kw

7. Hinge levo/dextro motor: 1.5kw / 3.7kw

8. Hinge square: 0.4kw

9. Tool max moving speed: 60m/min

10. Overall dimensions: 5000*3300*2350mm

11. Weight: 5500kg
