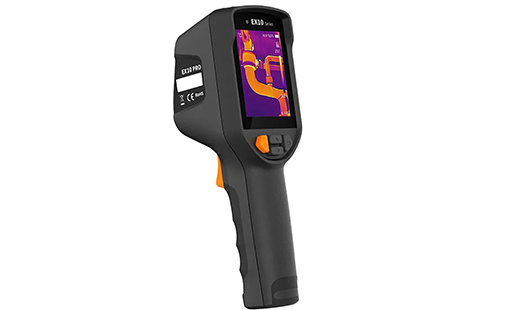

EX10 Series Handheld Thermal Camera

Provided with an infrared detector with a 160×120 resolution, EX10 Series employs real-time AI super-resolution to enhance its resolution to 320 ×240. Featuring a 2.8-inch display, video recording, UVC+WiFi screen projection and optional laser pointer, the device can be widely used in household maintenance, electrical maintenance, HVAC leak detection, automotive repairs and other fields.

Applications:

1. Household Maintenance: Quickly detect heat loss, moisture issues, and electrical faults in homes

2. HVAC Leak Detection: Identify temperature anomalies and pinpoint HVAC-related leaks

3. Automotive Maintenance: Inspect engines, brakes, and electrical systems for temperature irregularities

4. Equipment Maintenance: Detect abnormal heat patterns in machinery and electrical equipment

Features:

High-Resolution Thermal Imaging, Powered by Real-Time AI Super-Resolution:

1. 160×120 infrared resolution, enhanced to 320 × 240 with real-time AI super-resolution

2. NETD as low as 40mK, capable of distinguishing subtle temperature differences of 0.04°C

3. 8-inch display, presenting thermal images in detail

With professional-grade durability and offers unwavering reliability:

1. Feature a quick start-up function and offers up to 10 hours of continuous operation

2. 8GB of built-in memory, supporting large amounts of data storage

3. Rated IP54 for protection against dust and water, and built to withstand drops from up to 2 meters

Conduct smart surveys with efficient and accurate target localization:

1. Laser pointer function for quickly locating abnormal points

2. Wide measurement range from -20°C to 550°C, automatic range switching

3. Support video recording for post-analysis and documentation

4. Support UVC + Wi-Fi screen projection, compatible with PC and app software for further analysis

Specifications:

1. Infrared Resolution: 160×120

2. Detector Type: 12μm Uncooled infrared detector

3. Super-Resolution: 320x240

4. NETD: 40mK

5. Infrared Frame Rate: 25Hz

6. Focal Length: 2.6mm

7. FOV: 40°x30°

8. Focus Mode: Fixed focus

9. IFOV: 4.62 mrad

10. Minimum Imaging Distance: 11cm

11. Measurement Range: -20~150°C; 100~550°C; auto switching

12. Measurement Accuracy: ±2°C or ±2% of readings (whichever is greater)

13. Analysis Functions on the Device:

    1) E10: Central point / Highest temperature point / Lowest temperature point / 3 custom points

    2) E10 Pro: Central point / Highest temperature point / Lowest temperature point / 6 custom points

14. Display: 2.8-inch; 240x320 resolution

15. Visible Light Camera:

    1) E10: N/A

    2) E10 Pro: 2 megapixels

16. Connection Mode: USB2.0 Type-C

17. Laser Pointer:

    1) E10: Not Support

    2) E10 Pro: Support

18. Supporting Software:

    1) E10: PC (Infrared Analysis Software)

    2) E10 Pro: PC (Infrared Analysis Software) or Mobile (iOS/ Android APP)

19. Battery: 2750mAh lithium-ion battery

20. Battery Life: ≥10 hours

21. IP Grade/Drop Protection: IP54/2m

22. Weight and Dimensions:

    1) E10: 257g±10g (including battery), 206.9×67×81.5mm

    2) E10 Pro: 265g±10g (including battery), 206.9×67×81.5mm

23. Authentication: CE/FCC/DGM/CMA
