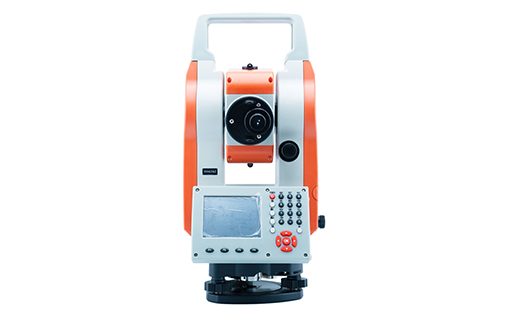

DTM952R Total Station

The DTM952R is a high-performance total station powered by Windows CE.NET 7.0, featuring a responsive touch screen for intuitive navigation and data management. It ensures superior precision with 2" angular accuracy, a 600m reflectorless range (3,000m with prism), and rapid measurement speeds of just 0.8s. With integrated Bluetooth and USB connectivity, the DTM952R guarantees seamless data transfer and efficient workflow in any construction environment.

Features:

1. Windows CE System & Touch Screen: Powered by Windows CE.NET 7.0 with a responsive touch screen interface for easy navigation and data management.

2. High Accuracy & Range: Delivers 2" accuracy, a 3,000m range with a single prism (2mm + 2ppm), and a 600m reflectorless range (3mm + 2ppm).

3. Fast Measuring Speed: Achieves rapid measurements with 1.0s in Standard mode and 0.8s in Tracking mode, boosting onsite productivity.

4. Integrated Connectivity: Features integrated Bluetooth, USB, and Serial ports for seamless wireless and wired data transfer to PCs and controllers.

Specifications:

Distance Measurement:

1. Reflectorless Range: 600m (Good Conditions)

2. Prism Range: 3,000m (Good Conditions)

3. Prism Accuracy: 2mm + 2ppm·D

4. Reflectorless Accuracy: 3mm + 2ppm·D

5. Measuring Time (Standard): 1s

6. Measuring Time (Tracking): 0.8s

Angle Measurement:

1. Reading System: Absolute Encoder

2. Accuracy: 2" (0.6mgon)

3. Circle Diameter: 74mm (2.9 in)

4. Detection Method: Diametrical / Single

5. Minimum Increment: 1.0" (0.2mgon)

6. Unit: Degree / Mil / Gon / V%

Tilt Sensor:

1. Type: Dual-axis

2. Method: Liquid-electric detection

3. Compensation Range: ±3'

Telescope:

1. Tube Length: 161.3mm (6.3in)

2. Image: Erect

3. Magnification: 30x

4. Effective Aperture: 48mm (1.85in)

5. Field of View: 1°30'

6. Resolving Power: 3.5"

7. Minimum Focus: 1.5 m (4.9 ft)

8. Laser Pointer: Coaxial Red Light

9. Reticle Type: Crosshair

10. Stadia Ratio / Constant: 100 / 0

Communications & System:

1. Ports: 1 x Serial (RS-232C), 1 x USB

2. Wireless: Integrated Bluetooth

3. Operating System: Windows CE.NET 7.0

General & Power:

1. Internal Plummet: Class 2 Laser (1.5mm @ 1.5m)

2. Tangent Clamps: Yes

3. Battery: 2x Li-ion Rechargeable

4. Output Voltage: 3.6V

5. Charging Time: Approx. 6.5h (Both batteries)

Physical & Environmental:

1. Tubular Level Sensitivity: 30" / 2mm

2. Circular Level Sensitivity: 8' / 2mm

3. Tribrach Circular Sensitivity: 10' / 2mm

4. Dimensions: 180 x 175 x 355mm

5. Weight (Main Unit): 6.5kg

6. Operating Temp: -20°C to +50°C (-4°F to +122°F)

7. Storage Temp: -25°C to +60°C (-13°F to +140°F)

8. Atmospheric Correction: -23°C to +55°C (-9.4°F to +131°F)
